Product introduction

Clamp type precision filter is also known as security filter. The shell is made of high quality stainless steel, and the filter element is formed by the filter material (PP melting spray, wire winding, bending, titanium rod). Under the action of pressure, the stock solution passes through the filter material, the filter residue stays on the filter material, and the filtrate flows out through the filter material, which can effectively remove the impurities in the water. Sediment and debris, bacteria, thus achieving the purpose of filtration. Material according to customer requirements customized 304 or 316L material. The connection mode of the upper head and the cylinder is divided into clamp type, flange type and quick loading sling ring type. Legs and rocker arms can be added upon request.

Product Description

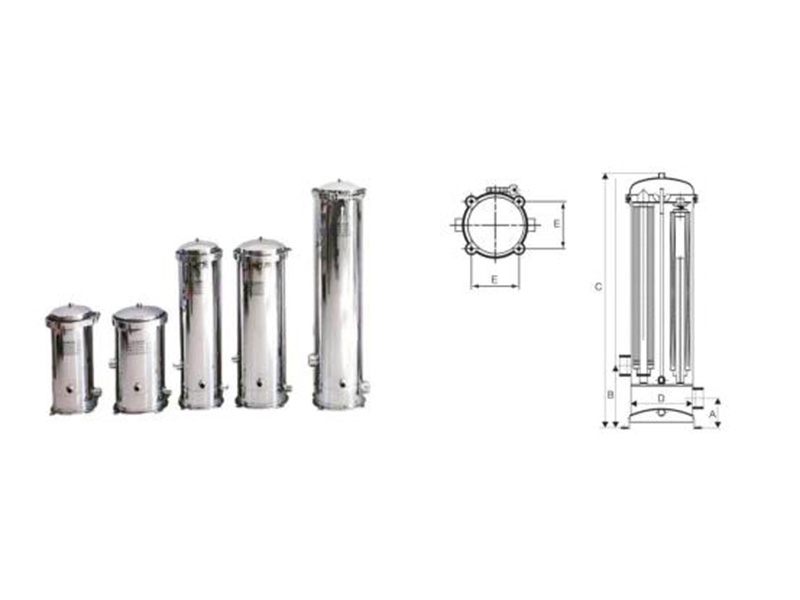

YH1----Clamp type precision filter (clamp type)

型号 Model	进出水 In/out	排气口 vent	排污口 Drain	A mm	B mm	C mm	D mm	E mm
3芯10’’	1’’	1/4’’	1/2’’	50	160	450	170	140
3芯20’’	1’’	1/4’’	1/2’’	50	160	650	170	140
5芯10’’	1’’	1/4’’	1/2’’	50	175	450	200	165
5芯20’’	1’’;1-1/4’’;1-1/2’’	1/4’’	1/2’’	50	175	660	200	165
5芯30’’	1-1/2’’	1/4’’	1/2’’	50	175	910	200	165
5芯40’’	1-1/2’’	1/4’’	1/2’’	50	175	1160	200	165
7芯20’’	1-1/2’’	1/4’’	1/2’’	50	175	670	219	185
7芯30’’	1-1/2’’	1/4’’	1/2’’	50	175	920	219	185
7芯40’’	2’’	1/4’’	1/2’’	50	175	1170	219	185

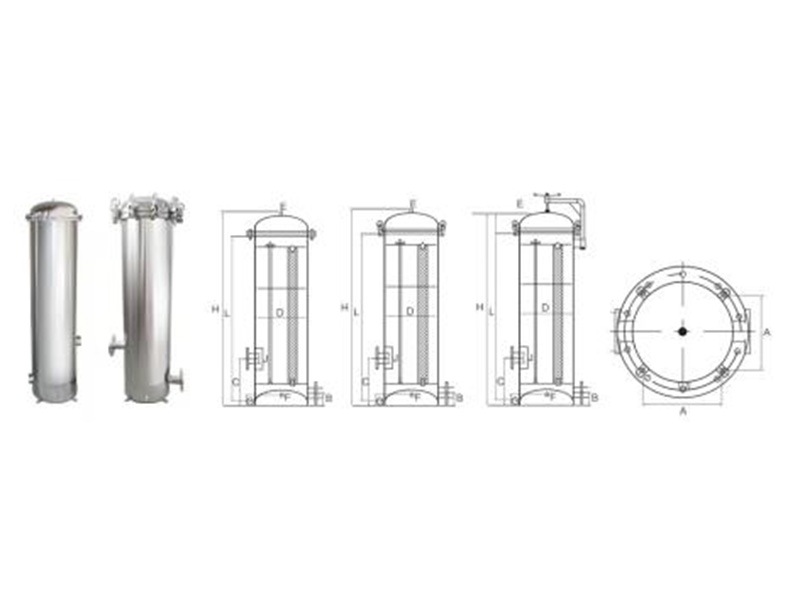

YH2---Clamp type precision filter (flat bottom)

型号 Model	进出水 In/out	排气口 vent	排污口 Drain	B mm	C mm	H mm	D mm	A mm
3芯10’’	1’’	1/4’’	1/2’’	50	160	450	170	140
3芯20’’	1’’	1/4’’	1/2’’	50	160	650	170	140
5芯10’’	1’’	1/4’’	1/2’’	50	175	450	200	165
5芯20’’	1’’；1-1/4’’；1-1/2’’	1/4’’	1/2’’	50	175	660	200	165
5芯30’’	1-1/2’’	1/4’’	1/2’’	50	175	910	200	165
5芯40’’	1-1/2’’	1/4’’	1/2’’	50	175	1160	200	165
7芯20’’	1-1/2’’	1/4’’	1/2’’	50	175	670	219	185
7芯30’’	1-1/2’’	1/4’’	1/2’’	50	175	920	219	185
7芯40’’	2’’	1/4’’	1/2’’	55	175	1170	219	185
10芯40’’	2’’	1/4’’	1/2’’	90	350	1360	270	220
12芯40’’	2’’	1/4’’	1/2’’	90	350	1370	300	230
15芯40’’	2-1/2’’	1/4’’	1/2’’	90	350	1380	350	270
20芯40’’	2-1/2’’	1/4’’	1/2’’	105	350	1400	400	315
25芯40’’	3’’	1/4’’	1/2’’	105	350	1410	450	340
32芯40’’	3’’	1/4’’	1/2’’	140	350	1420	500	385
40芯40’’	4’’	1/4’’	1/2’’	140	350	1430	550	415
50芯40’’	4’’	1/4’’	1/2’’	140	350	1450	600	460
60芯40’’	4’’	1/4’’	1/2’’				700
68芯40’’	4’’	1/4’’	1/2’’				750
80芯40’’	5’’	1/4’’	1/2’’				800
90芯40’’	5’’	1/4’’	1/2’’				900
100芯40寸’’	6’’	1/4’’	1/2’’				1000

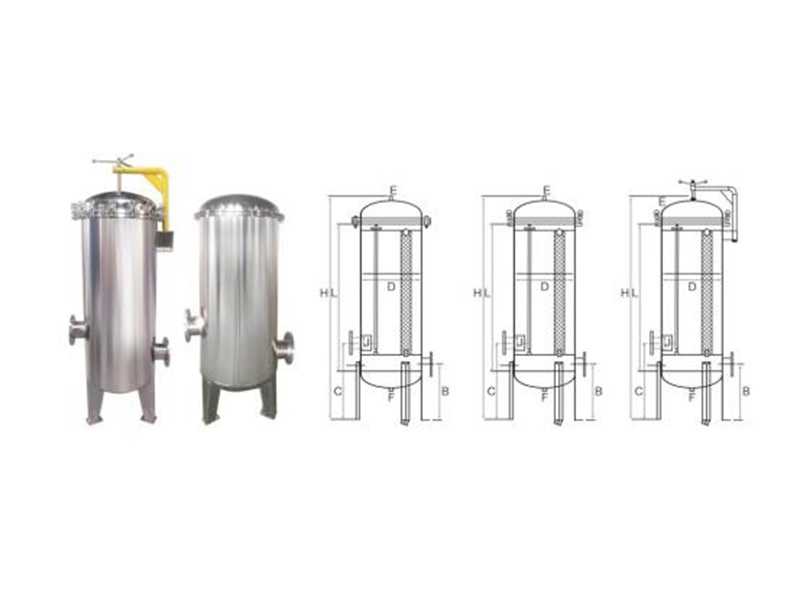

YH3----Clamp type precision filter（Leg type）

型号 Model	进出水 In/out	排气口 Vent	排污口 Drain	B mm	C mm	H mm	D mm
10芯40’’	2’’	1/4’’	1/2’’	390	650	1660	270
12芯40’’	2’’	1/4’’	1/2’’	390	650	1670	300
15芯40’’	2-1/2’’	1/4’’	1/2’’	390	650	1730	350
20芯40’’	2-1/2’’	1/4’’	1/2’’	405	650	1750	400
25芯40’’	3’’	1/4’’	1/2’’	405	650	1760	450
32芯40’’	3’’	1/4’’	1/2’’	440	650	1770	500
40芯40’’	4’’	1/4’’	1/2’’	440	650	1780	550
50芯40’’	4’’	1/4’’	1/2’’	440	650	1800	600
60芯40’’	4’’	1/4’’	1/2’’				700
68芯40’’	4’’	1/4’’	1/2’’				750
80芯40’’	5’’	1/4’’	1/2’’				800
90芯40’’	5’’	1/4’’	1/2’’				900
100芯40寸’’	6’’	1/4’’	1/2’’				1000
