Product Description

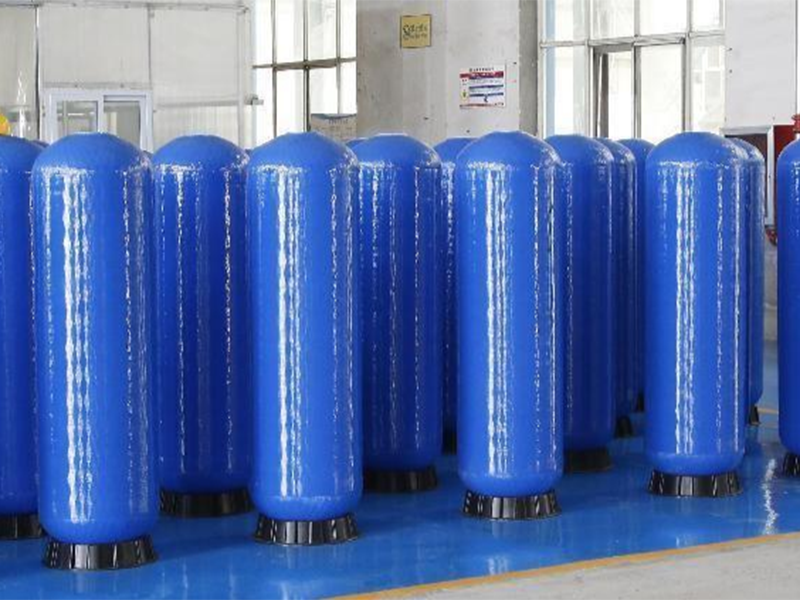

ARCLION series of FRP softener water tank is 125 psi and 150 psi
Using food grade HDPE liner
Epoxy resin + glass fiber winding reinforcement
The mouth is divided into industrial, civil and flange connection
Working pressure and detection are 125 psi and 150 psi respectively, more than 100,000 times fatigue tests. Burst test with 4 times of its design pressure.
Products have passed NSF certification, international ISO9001 quality system certification and CE certification.

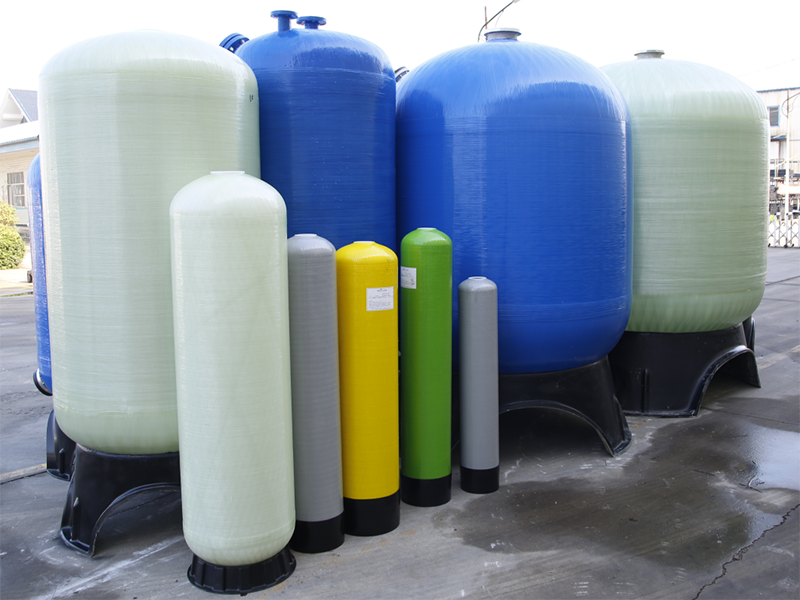

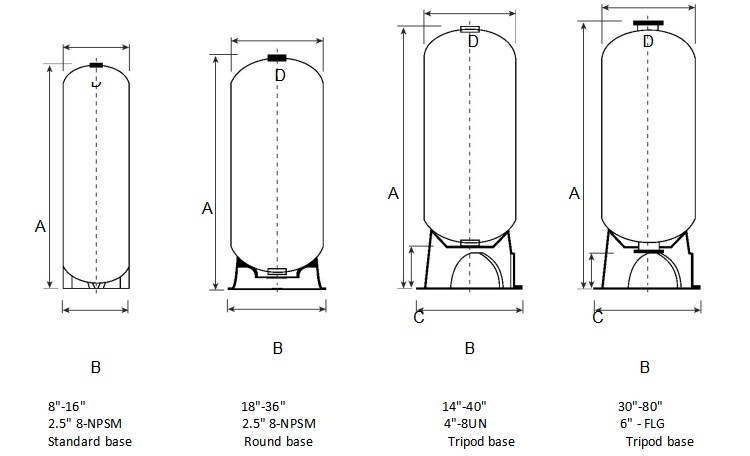

Specifications and models: 5-inches - 80-inches (diameter 130mm- 2000mm)
Working temperature: 1C-49°C (34F -120F )

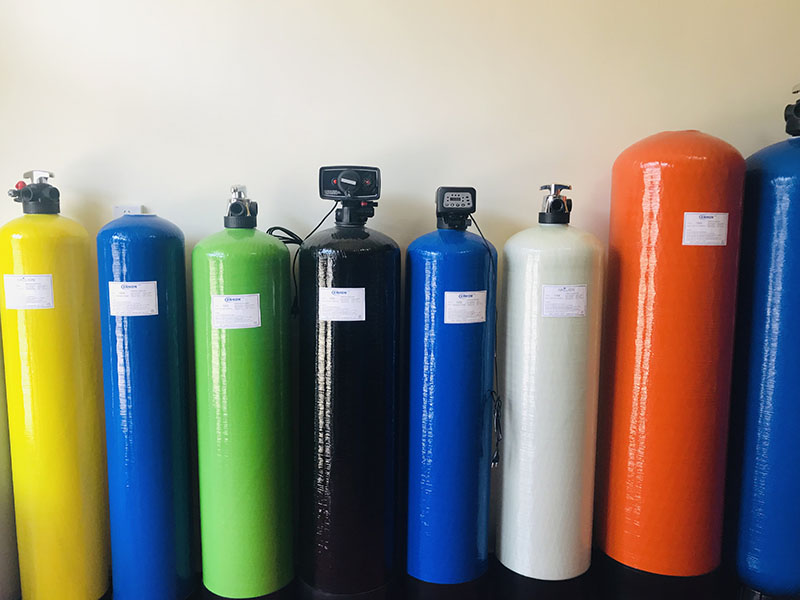

Color: Default natural color and blue, accept a variety of color customization.
| 150 psi FRP softner tanks | |||||
| Item | Size | Dimensions | CBM | Weight | |
| Dia.*Height | Model | m | kg | ||
| 1 | 150*254 | 610-2.5" | 0.166*0.166*0.259 | 0.0071 | 0.9 |
| 2 | 150*320 | 613-2.5" | 0.166*0.166*0.335 | 0.0092 | 1.2 |
| 3 | 150*432 | 617-2.5" | 0.166*0.166*0.437 | 0.0120 | 1.6 |
| 4 | 150*457 | 618-2.5" | 0.166*0.166*0.462 | 0.0127 | 1.6 |
| 5 | 150*736 | 629-2.5" | 0.166*0.166*0.741 | 0.0204 | 2.0 |
| 6 | 150*889 | 635-2.5" | 0.166*0.166*0.894 | 0.0246 | 2.3 |
| 7 | 180*320 | 713-2.5" | 0.188*0.188*0.335 | 0.0118 | 1.5 |
| 8 | 180*422 | 717-2.5" | 0.188*0.188*0.437 | 0.0154 | 1.7 |
| 9 | 180*610 | 724-2.5" | 0.188*0.188*0.625 | 0.0221 | 2.1 |
| 10 | 180*762 | 730-2.5" | 0.188*0.188*0.777 | 0.0275 | 2.4 |
| 11 | 180*879 | 735-2.5" | 0.188*0.188*0.894 | 0.0316 | 2.7 |
| 12 | 180*1108 | 744-2.5" | 0.188*0.188*1.124 | 0.0397 | 3.2 |
| 13 | 200*330 | 813-2.5" | 0.330*0.216*0.216 | 0.0154 | 1.8 |
| 14 | 200*432 | 817-2.5" | 0.432*0.216*0.216 | 0.0202 | 2.2 |
| 15 | 200*610 | 824-2.5" | 0.610*0.216*0.216 | 0.0287 | 2.5 |
| 16 | 200*890 | 835-2.5" | 0.890*0.216*0.216 | 0.0418 | 3.7 |
| 17 | 200*1120 | 844-2.5" | 1.120*0.216*0.216 | 0.0523 | 4.8 |
| 18 | 230*432 | 917-2.5" | 0.432*0.24*0.24 | 0.0249 | 2.4 |
| 19 | 230*890 | 935-2.5" | 0.890*0.24*0.24 | 0.0513 | 3.9 |
| 20 | 230*1068 | 942-2.5" | 1.068*0.24*0.24 | 0.0615 | 4.7 |
| 21 | 230*1220 | 948-2.5" | 1.220*0.24*0.24 | 0.0703 | 5.2 |
| 22 | 250*432 | 1017-2.5" | 0.432*0.266*0.266 | 0.0306 | 3.0 |
| 23 | 250*484 | 1019-2.5" | 0.484*0.266*0.266 | 0.0342 | 3.1 |
| 24 | 250*610 | 1024-2.5" | 0.610*0.266*0.266 | 0.0432 | 3.6 |
| 25 | 250*890 | 1035-2.5" | 0.890*0.266*0.266 | 0.0630 | 4.7 |
| 26 | 250*1119 | 1044-2.5" | 1.119*0.266*0.266 | 0.0792 | 5.2 |
| 27 | 250*1373 | 1054-2.5" | 1.373*0.266*0.266 | 0.0971 | 6.5 |
| 28 | 250*1373 | 1054-4" | 1.373*0.266*0.266 | 0.0971 | 6.5 |
| 29 | 300*1220 | 1248-2.5" | 1.220*0.318*0.318 | 0.1234 | 7.1 |
| 30 | 300*1333 | 1252-2.5" | 1.333*0.318*0.318 | 0.1348 | 8.9 |
| 31 | 300*1652 | 1265-2.5" | 1.652*0.318*0.318 | 0.1671 | 9.9 |
| 32 | 330*1117 | 1344-2.5" | 1.117*0.343*0.343 | 0.1314 | 9.2 |
| 33 | 330*1372 | 1354-2.5" | 1.372*0.343*0.343 | 0.1614 | 10.4 |
| 34 | 350*1336 | 1452-2.5" | 1.336*0.369*0.369 | 0.1819 | 11.5 |
| 35 | 350*1336 | 1452-4" | 1.336*0.369*0.369 | 0.1819 | 11.5 |
| 36 | 350*1661 | 1465-2.5" | 1.661*0.369*0.369 | 0.2262 | 14.0 |
| 37 | 350*1661 | 1465-4" | 1.661*0.369*0.369 | 0.2262 | 14.0 |
| 38 | 350*1850 | 1465-4"-4" | 1.850*0.370*0.370 | 0.2533 | 15.1 |
| 39 | 400*1325 | 1652-2.5" | 1.325*0.42*0.42 | 0.2337 | 13.7 |
| 40 | 400*1325 | 1652-4" | 1.325*0.42*0.42 | 0.2337 | 13.7 |
| 41 | 400*1668 | 1665-2.5" | 1.668*0.42*0.42 | 0.2942 | 15.8 |
| 42 | 400*1668 | 1665-4" | 1.668*0.42*0.42 | 0.2942 | 15.8 |
| 43 | 400*1877 | 1665-4"-4" | 1.877*0.42*0.42 | 0.3311 | 16.9 |
| 44 | 450*920 | 1836-4" | 0.920*0.462*0.462 | 0.1964 | 13.6 |
| 45 | 450*1350 | 1853-4" | 1.350*0.462*0.462 | 0.2916 | 20.1 |
| 46 | 450*1655 | 1865-4" | 1.655*0.462*0.462 | 0.3532 | 23.5 |
| 47 | 450*1873 | 1865-4"-4" | 1.873*0.48*0.48 | 0.4315 | 25.5 |
| 48 | 450*1873 | 1865-6"-6" | 1.873*0.48*0.48 | 0.4315 | 26.0 |
| 49 | 500*1770 | 2069-4" | 1.770*0.523*0.523 | 0.4841 | 27.0 |
| 50 | 500*1955 | 2069-4"-4" | 1.955*0.535*0.535 | 0.5596 | 28.5 |
| 51 | 550*940 | 2136-4" | 0.940*0.539*0.539 | 0.2731 | 19.4 |
| 52 | 550*1370 | 2153-4" | 1.370*0.539*0.539 | 0.3980 | 25.4 |
| 53 | 550*1600 | 2162-4" | 1.600*0.539*0.539 | 0.4648 | 29.8 |
| 54 | 550*1804 | 2162-4"-4" | 1.804*0.555*0.555 | 0.5557 | 32.0 |
| 55 | 600*1920 | 2465-4"-4" | 1.920*0.613*0.613 | 0.7215 | 41.5 |
| 56 | 600*2080 | 2472-4"-4" | 2.080*0.613*0.613 | 0.7816 | 47.5 |
| 57 | 750*1855 | 3065-4"-4" | 1.855*0.766*0.766 | 1.0884 | 54.8 |
| 58 | 750*2035 | 3072-4"-4" | 2.035*0.766*0.766 | 1.1940 | 63.0 |
| 59 | 750*2240 | 3072-6"-6" | 2.240*0.815*0.815 | 1.4879 | 70.6 |
| 60 | 900*1900 | 3665-4"-4" | 1.90*0.919*0.919 | 1.6047 | 85.0 |
| 61 | 900*2060 | 3672-4"-4" | 2.060*0.919*0.919 | 1.7398 | 96.0 |
| 62 | 900*2160 | 3672-6"-6" | 2.160*0.92*0.92 | 1.8282 | 95.5 |
| 63 | 1000*1940 | 4065-4"-4" | 1.940*1.01*1.01 | 1.9790 | 114.1 |
| 64 | 1000*1981 | 4065-6"-6" | 1.981*1.01*1.01 | 2.1014 | 119.1 |
| 65 | 1000*2160 | 4079-4"-4" | 2.160*1.01*1.01 | 2.2034 | 123.2 |
| 66 | 1000*2331 | 4079-6"-6" | 2.331*1.01*1.01 | 2.3779 | 128.2 |
| 67 | 1100*2180 | 4272-6"-6" | 2.180*1.08*1.08 | 2.5428 | 145.0 |
| 68 | 1200*2195 | 4872-6"-6" | 2.195*1.22*1.22 | 3.2670 | 157.0 |
| 69 | 1500*2425 | 6079-6"-6" | 2.425*1.512*1.512 | 5.5439 | 275.6 |
| 70 | 1600*2050 | 6367-6"-6" | 2.1*1.609*1.609 | 5.4367 | 249.3 |
| 71 | 1600*2460 | 6386-6"-6" | 2.6*1.609*1.609 | 6.7311 | 310.1 |
| 72 | 1800*2650 | 7279-6"-6" | 2.650*1.856*1.856 | 9.1286 | 425.0 |
| Note: 1. Above EXW prices are natural/blue color price, other color (black, green) need add 3%. Based on full 40HQs. 2. Carton package, and one 40HQ can load about 65CBM. 3. Production time: 20 working days after payment received for three 40HQs. 4. Payment term: 30% T/T in advance, 70% before delivery from Chengda factory. 5. Warranty: 24 months warranty against industry defects. | |||||
Product Advantage

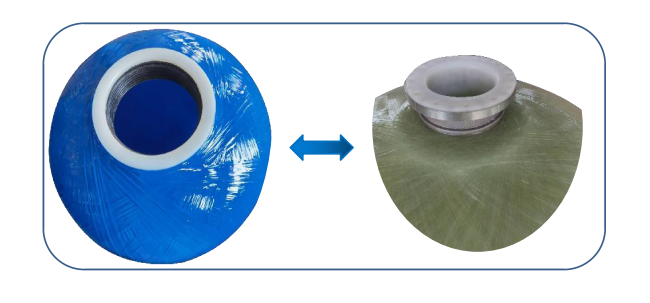

Additional feature 1: The surface of the opening is smooth/flat]
[2.5"/4" threaded port] and [6" flangeport] ,each opening surface is machined, flat, smooth, no blisters and air bubbles, so as to ensure no leakage after installing the valve.
At the bottom of each tanks all have a unique ID code. Use this ID code: first, anti -counterfeiting identification; second, can find which person in charge of it during production.

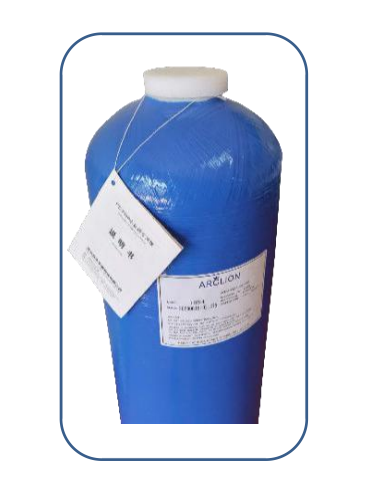

Each 2.5"/4" tank is equipped with abead cotton dust protection cap. First, it can prevent the damage of the opening surface and threaded port during transportation or human handling. Second, it can prevent dust and bacteria from entering the tank, which is more hygienic and safer.

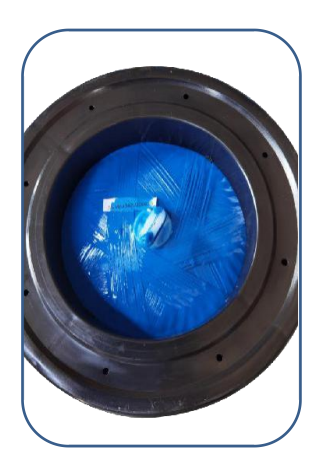

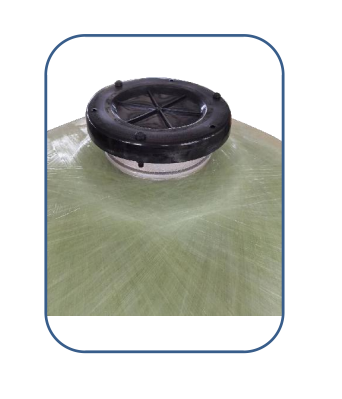

First, for each one 6" flange opening tank is equipped with a dust - proof protective cap, which can prevent the tankbody from being damaged during transportation or human handling, more safer.
Second, it canprevent dust, debrisand bacteria fromentering the tank,more hygienic.

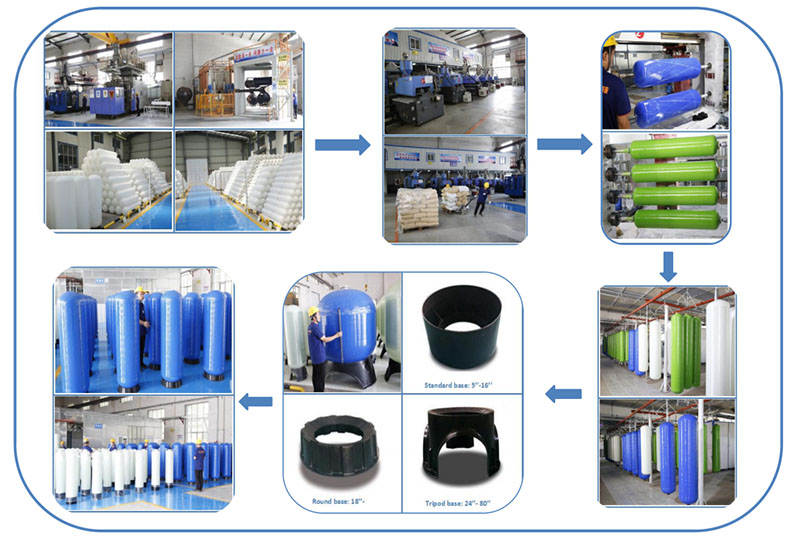

PRODUCING PROCESS
ArclionFRP tanks processes used for manufacturing :
1.Inner liner: Blow Molding: Suitable for 5" – 40" tank, Rotomolding: Suitable for 42" – 80" tank
2.All product accessories are self-produced and sold.
3. Epoxy + glass fiber winding reinforcement, four - axis and multi - station automatic CNC winding.
4. In order to make the epoxy resin and glass fiber integrated together, after the winding is completed, it needs to be cured in the temperature range of 60 ℃ for about six hours.
5. The base is assembled in different ways according to the size of the tank.
6. Products in quality inspection qualified packaging.

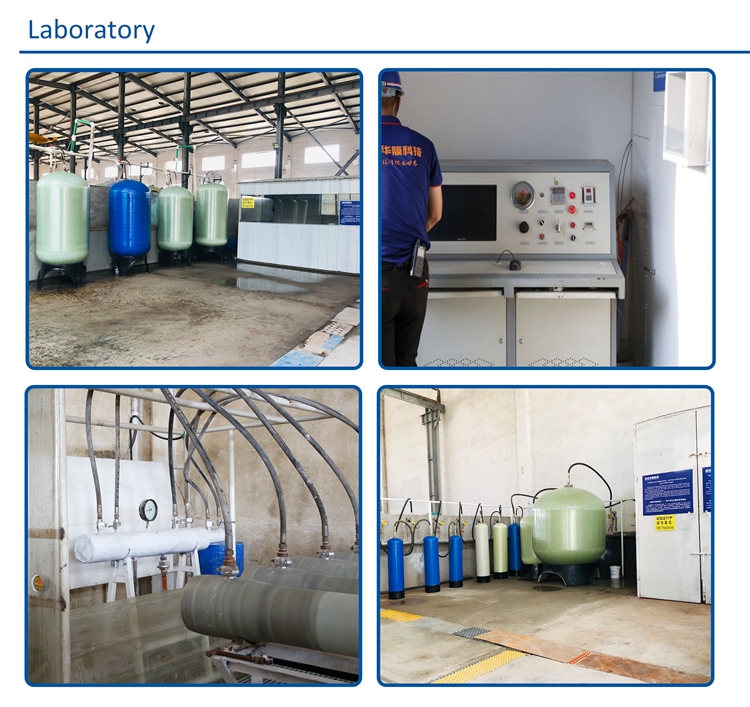

Water pressure testing
More than 1.2 times hydrostatic pressure test
The Hydrostatic test pressure is 1.2 times; For each of tanks
The Holding time is more than 15 minutes;
The boost rate is 0.4MPa/sec;
The test result needs to be without any penetration/leakage of the tanks. This test to make sure the stability ofquality.
100,000fatiguetests
Test pressure is 1.1MPa;The boost rate is 6 -16 times/min;
Designed and developed for 150,000 fatigue tests;
More than 100,000 times cycles during production.
Test result: without any penetration/leakage of the tanks.
This Ensure long - term weatherability of filter tanks.
More than 4 times burstpressure test
Test requirements: test pressure is 1.12MPa; The boost rate is 0.4MPa/sec Test result: without any penetration/leakage of the tanks.This test for check the quality ofproducts.

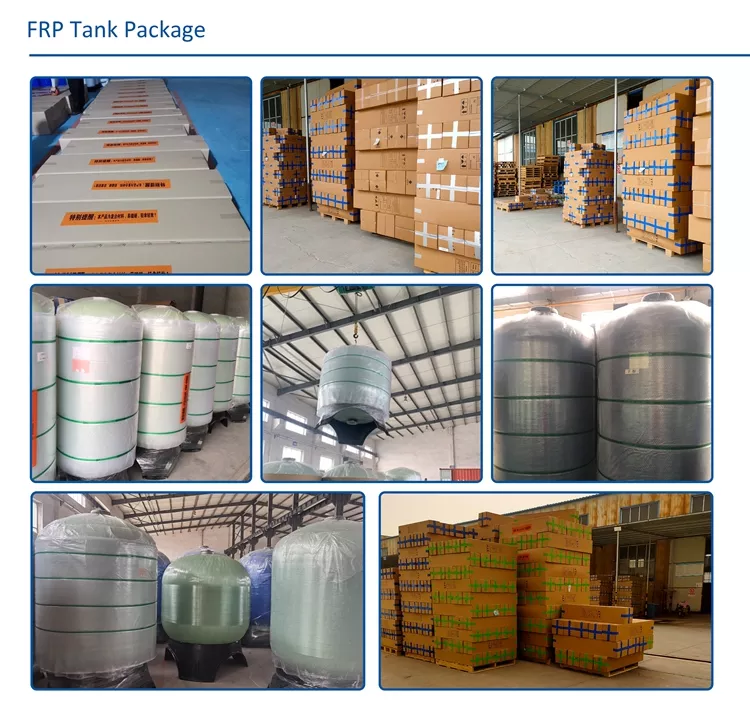

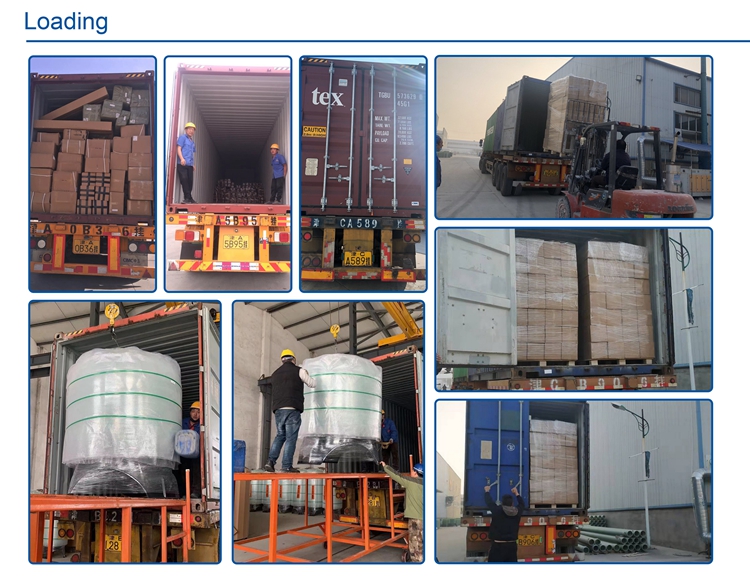

Package and loading

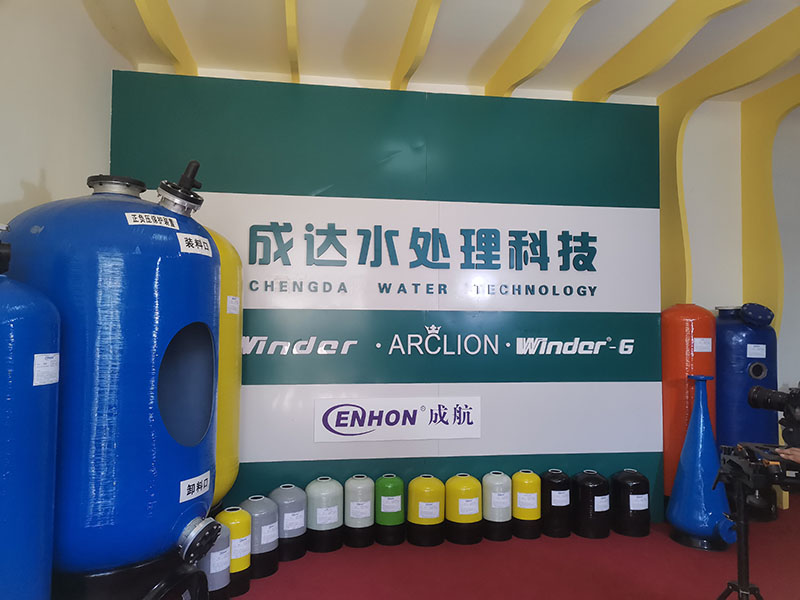

exhibition

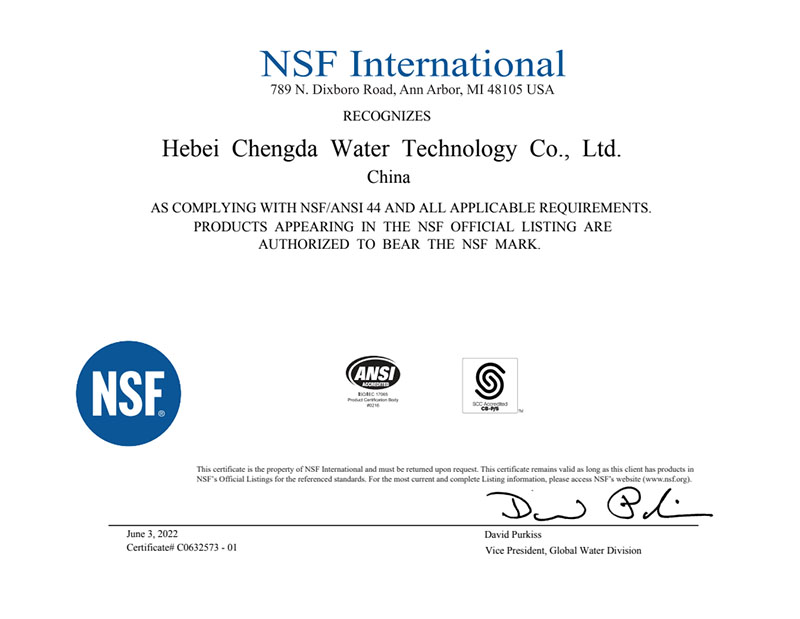

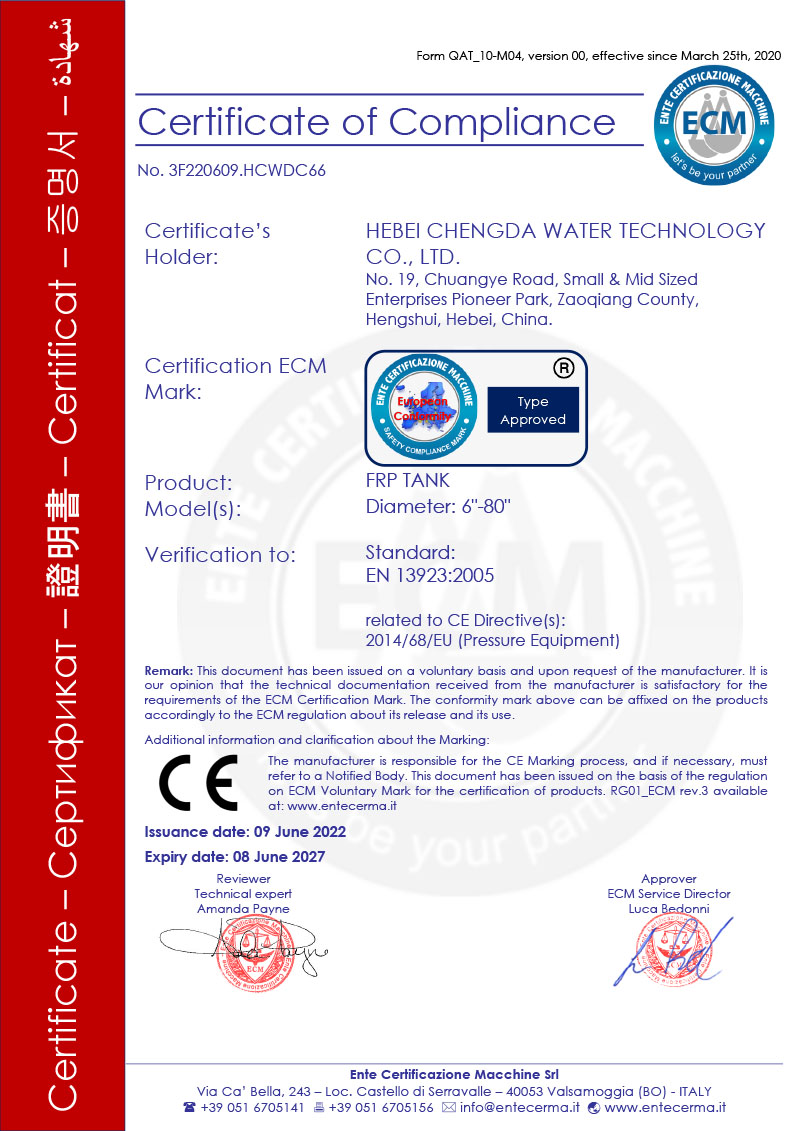

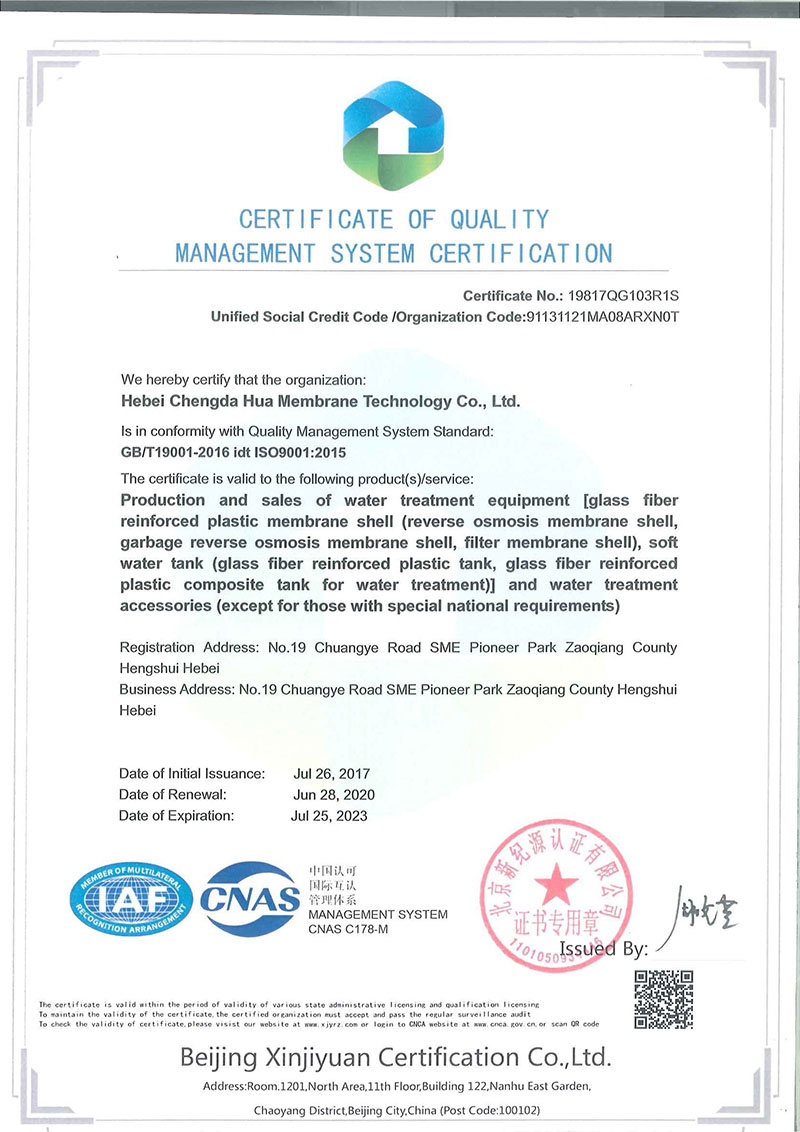

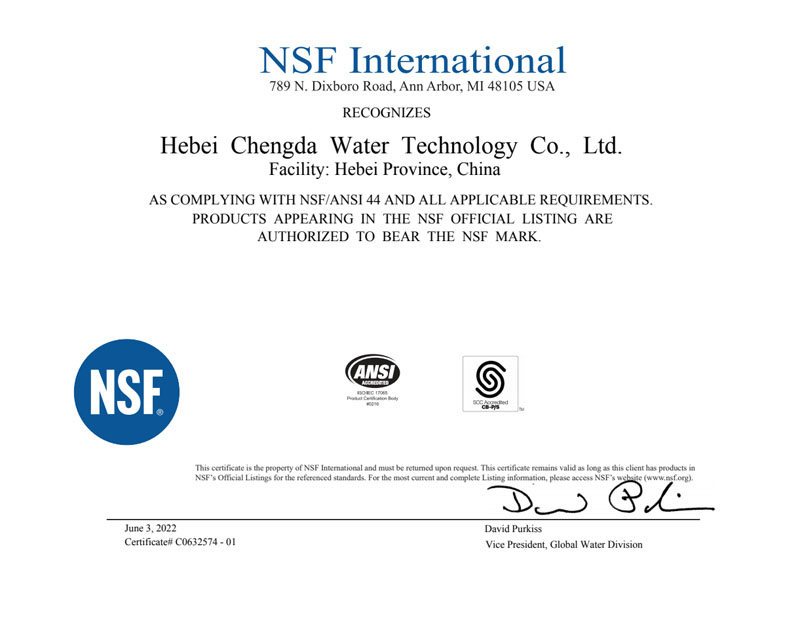

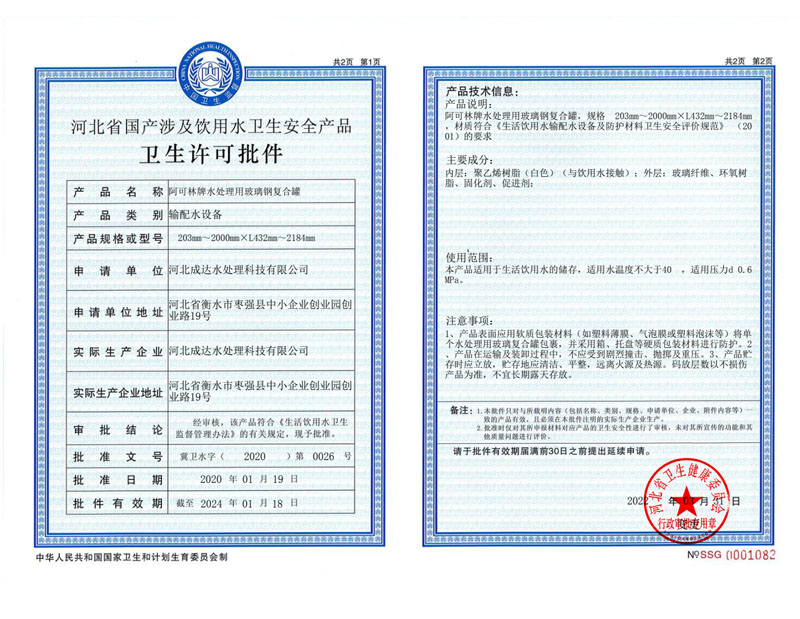

Tank certification

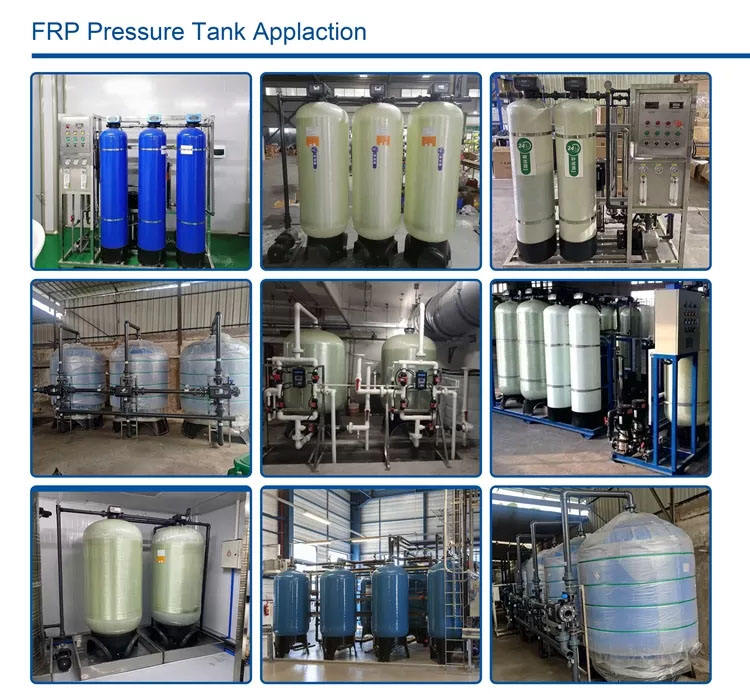

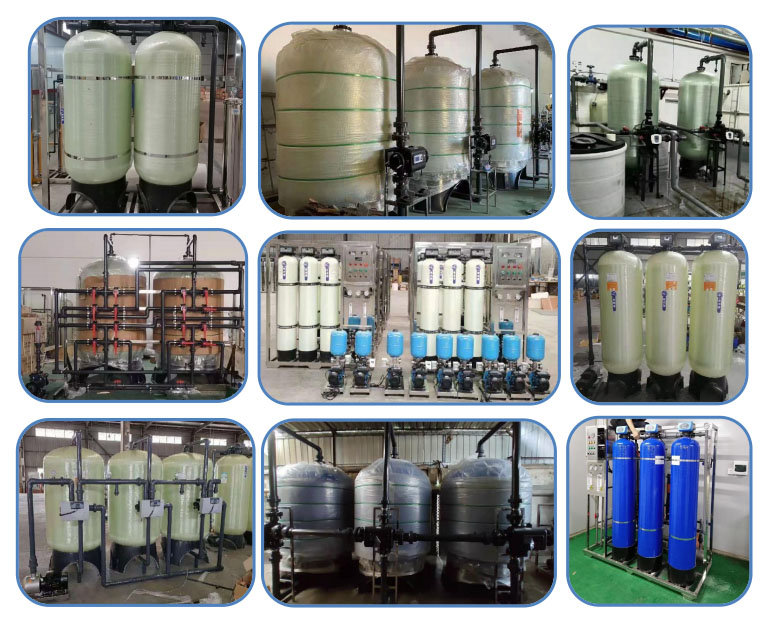

Application
FAQ
1. Q: Can you put our Logo on the product?
A: Sure,we can offer logo customized survice. More than 200pcs, logo printing is for free.
2. Q: What about the lead time for mass production?
A: It usually produces 3*40HQ in 20 days, it depends on the order quantity and the season you place the order. But as a professional manufacturer, we can always achieve your deadline.
3.Q: Can you offer sample before mass order?is it free or extra?
A:Yes samples will be kindly arranged for quality check, we could offer the sample for free charge but do not pay the cost of freight.please contact us for more details.
4. Q: Can I visit your factory?
A: Sure,welcome to contact us if you would like to visit.
5. Q: Are you manufacturer or trade company?
A: We are a professional manufacturer of FRP shell and FRP tank.
6. Q:What is your MOQ?
A:Our ready stock MOQ is 1pcs.For custom logo order MOQ is 1pcs, can mix different color.
7. Q: How about your product quality?
A:All of our product has been quality checked before shipping.Any quality problem when you receive the products, pls contact us.
8: Q:What is your terms of payment?
A: We accept TT, Alipay and other payment tools.
